SIHH070N60EF-T1GE3

In Stock: 6,259

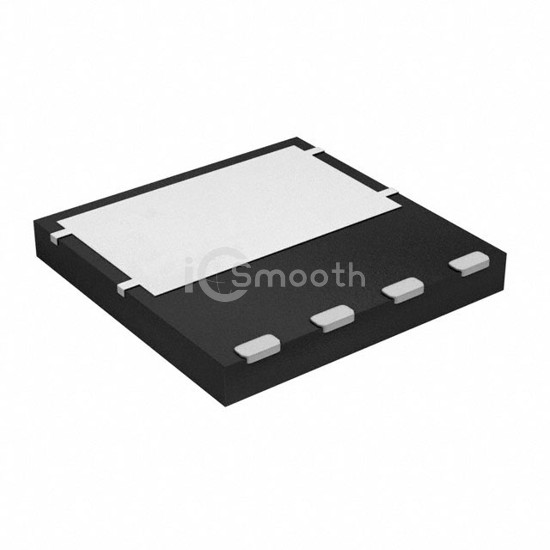

SIHH070N60EF-T1GE3 - Vishay Siliconix - Transistors - FETs, MOSFETs - Single
REF: SIHH070N60EF-T1GE3 Vishay Siliconix
SIHH070N60EF-T1GE3

Vishay Siliconix

MOSFET N-CH 600V 36A PPAK 8 X 8

SIHH070N60EF-T1GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 600V 36A PPAK 8 X 8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 6,259

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs71mOhm @ 15A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs75 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds2647 pF @ 100 V
FET Feature-
Power Dissipation (Max)202W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® 8 x 8
Package / Case8-PowerTDFN
