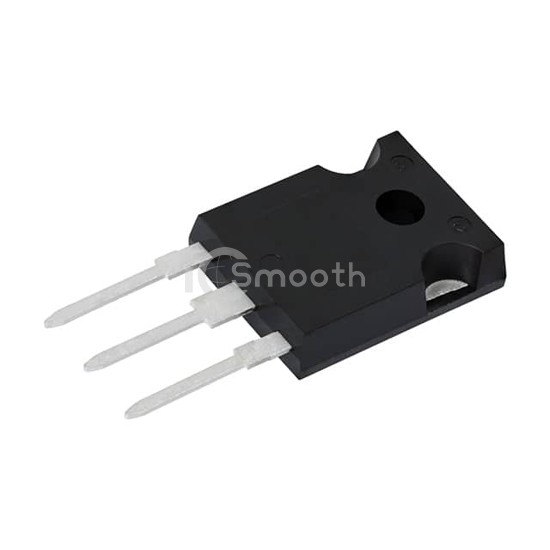

Name: SIHG17N80AEF-GE3
Brand: Vishay Siliconix
SKU: SIHG17N80AEF-GE3
Price: 3.36 USD
Availability: InStock

REF: SIHG17N80AEF-GE3 Vishay Siliconix

SIHG17N80AEF-GE3

Vishay Siliconix

E SERIES POWER MOSFET WITH FAST

SIHG17N80AEF-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. E SERIES POWER MOSFET WITH FAST. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 3,446

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	305mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	63 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1300 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	179W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247AC
Package / Case	TO-247-3
