Name: SIHFPS43N50K-GE3
Brand: Vishay Siliconix
SKU: SIHFPS43N50K-GE3
Availability: InStock

REF: SIHFPS43N50K-GE3 Vishay Siliconix

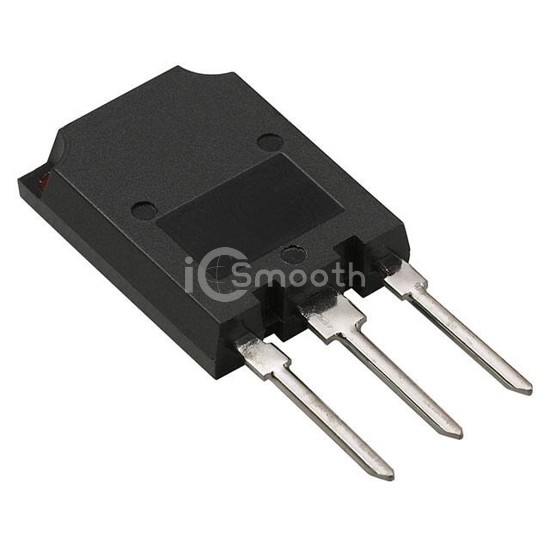

SIHFPS43N50K-GE3

MOSFET N-CH 500V SUPER-247

SIHFPS43N50K-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 500V SUPER-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-274AA.

Datasheet Request a Quote

In Stock: 5,920

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	47A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	90mOhm @ 28A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	350 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	8310 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	540W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-247™ (TO-274AA)
Package / Case	TO-274AA
