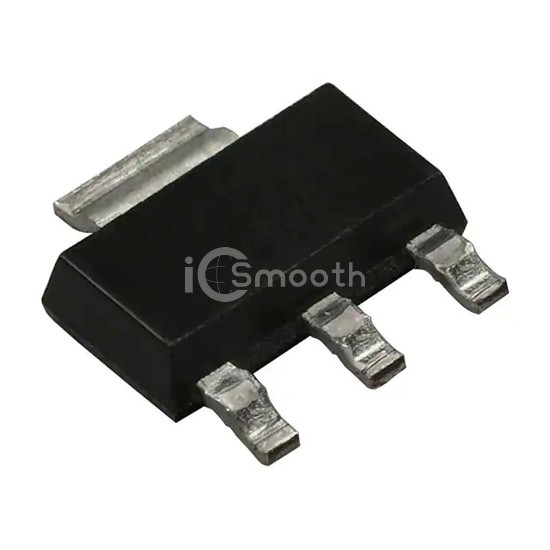

Name: SIHFL210TR-GE3
Brand: Vishay Siliconix
SKU: SIHFL210TR-GE3
Price: 0.70 USD
Availability: InStock

REF: SIHFL210TR-GE3 Vishay Siliconix

SIHFL210TR-GE3

Vishay Siliconix

MOSFET N-CHANNEL 200V

SIHFL210TR-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CHANNEL 200V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 2,433

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	960mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.5Ohm @ 580mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	140 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 3.1W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
