Name: SIHFBF30S-GE3
Brand: Vishay Siliconix
SKU: SIHFBF30S-GE3
Price: 1.96 USD
Availability: InStock

REF: SIHFBF30S-GE3 Vishay Siliconix

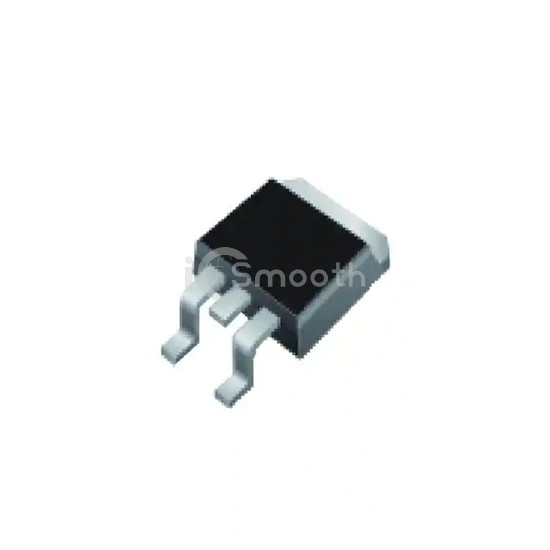

SIHFBF30S-GE3

Vishay Siliconix

MOSFET N-CHANNEL 900V

SIHFBF30S-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CHANNEL 900V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 998

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	3.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.7Ohm @ 2.2A, 100V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	78 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1200 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D²PAK (TO-263)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
