Name: SIHF8N50D-E3
Brand: Vishay Siliconix
SKU: SIHF8N50D-E3
Price: 1.74 USD
Availability: InStock

REF: SIHF8N50D-E3 Vishay Siliconix

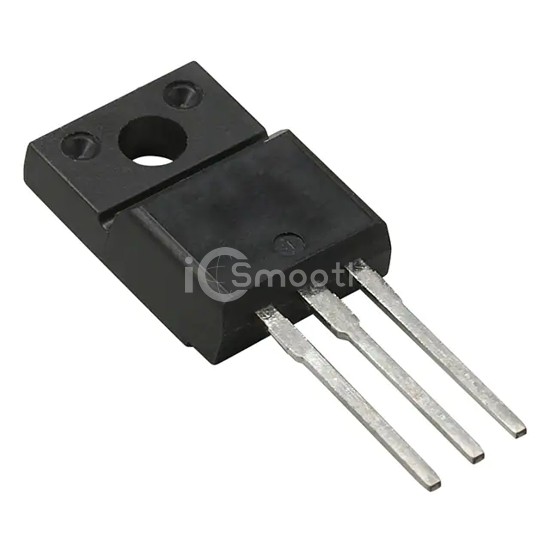

SIHF8N50D-E3

MOSFET N-CH 500V 8.7A TO220

SIHF8N50D-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 500V 8.7A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 1,802

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	8.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	850mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	527 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	33W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220 Full Pack
Package / Case	TO-220-3 Full Pack
