Name: SIHF35N60E-GE3
Brand: Vishay Siliconix
SKU: SIHF35N60E-GE3
Price: 3.47 USD
Availability: InStock

REF: SIHF35N60E-GE3 Vishay Siliconix

SIHF35N60E-GE3

Vishay Siliconix

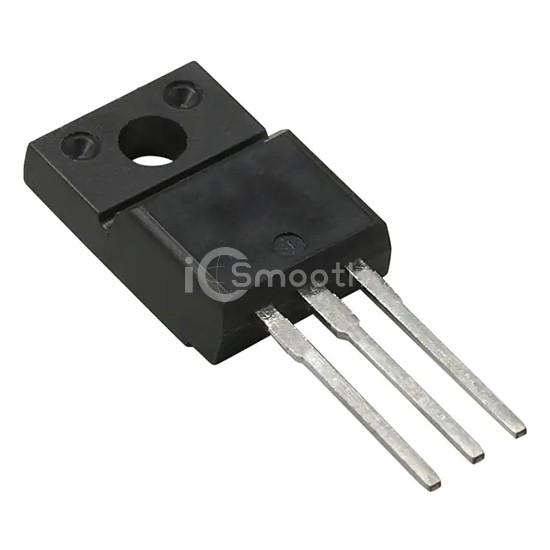

MOSFET N-CHANNEL 600V 32A TO220

SIHF35N60E-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CHANNEL 600V 32A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 9,322

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	94mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	132 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2760 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	39W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220 Full Pack
Package / Case	TO-220-3 Full Pack
