Name: SIHF28N60EF-GE3
Brand: Vishay Siliconix
SKU: SIHF28N60EF-GE3
Price: 3.71 USD
Availability: InStock

REF: SIHF28N60EF-GE3 Vishay Siliconix

SIHF28N60EF-GE3

Vishay Siliconix

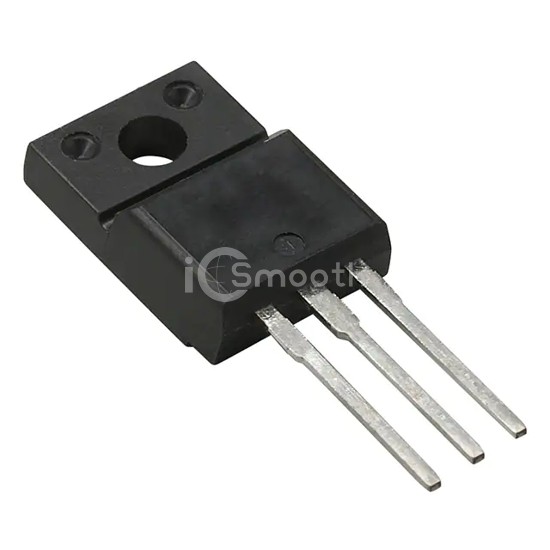

MOSFET N-CH 600V 28A TO220

SIHF28N60EF-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 600V 28A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 6,099

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	28A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	123mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	120 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2714 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	39W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220 Full Pack
Package / Case	TO-220-3 Full Pack
