Name: SIHF23N60E-GE3
Brand: Vishay Siliconix
SKU: SIHF23N60E-GE3
Price: 2.02 USD
Availability: InStock

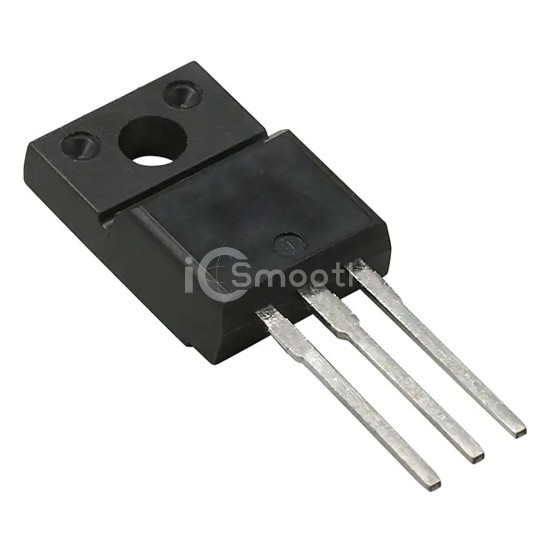

REF: SIHF23N60E-GE3 Vishay Siliconix

SIHF23N60E-GE3

Vishay Siliconix

MOSFET N-CH 600V 23A TO220

SIHF23N60E-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 600V 23A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 2,255

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	158mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	95 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2418 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	35W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220 Full Pack
Package / Case	TO-220-3 Full Pack
