Name: SIHD12N50E-GE3
Brand: Vishay Siliconix
SKU: SIHD12N50E-GE3
Price: 1.88 USD
Availability: InStock

REF: SIHD12N50E-GE3 Vishay Siliconix

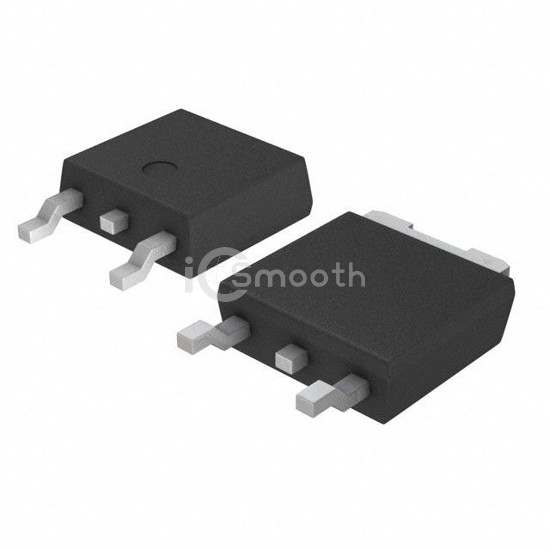

SIHD12N50E-GE3

Vishay Siliconix

MOSFET N-CH 550V 10.5A DPAK

SIHD12N50E-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 550V 10.5A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TA), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 2,385

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	550 V
Current - Continuous Drain (Id) @ 25°C	10.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	380mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	886 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	114W (Tc)
Operating Temperature	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
