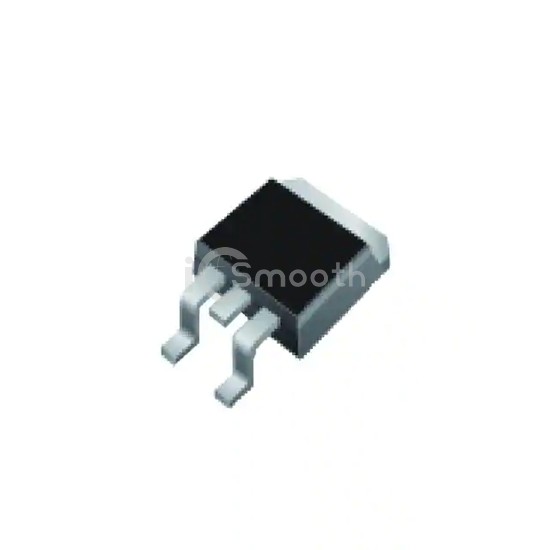

Name: SIHB28N60EF-T1-GE3
Brand: Vishay Siliconix
SKU: SIHB28N60EF-T1-GE3
Price: 6.50 USD
Availability: InStock

REF: SIHB28N60EF-T1-GE3 Vishay Siliconix

SIHB28N60EF-T1-GE3

Vishay Siliconix

N-CHANNEL 600V

SIHB28N60EF-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 600V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 5,290

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	28A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	123mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	120 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2714 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	250W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D²PAK (TO-263)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
