Name: SIHB055N60EF-GE3
Brand: Vishay Siliconix
SKU: SIHB055N60EF-GE3
Price: 6.75 USD
Availability: InStock

REF: SIHB055N60EF-GE3 Vishay Siliconix

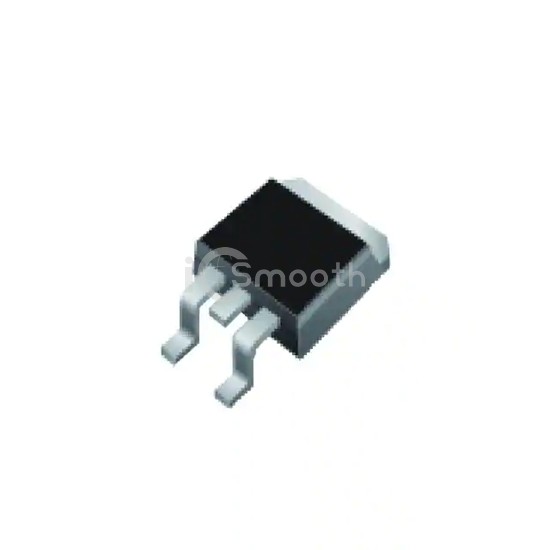

SIHB055N60EF-GE3

Vishay Siliconix

EF SERIES POWER MOSFET WITH FAST

SIHB055N60EF-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. EF SERIES POWER MOSFET WITH FAST. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 2,993

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	46A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	55mOhm @ 26.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	95 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3707 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	278W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D²PAK (TO-263)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
