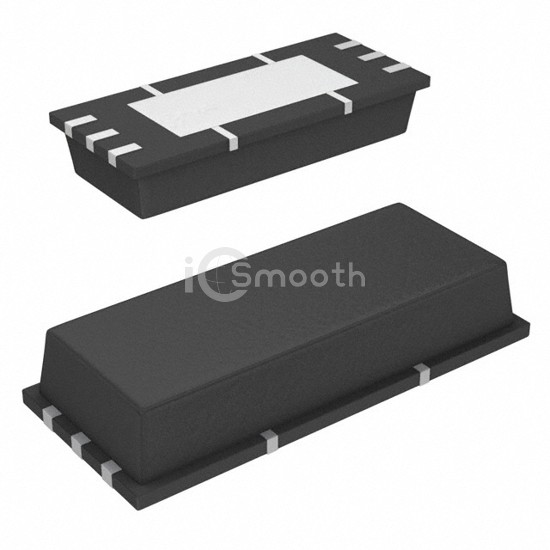

Name: SIF902EDZ-T1-E3
Brand: Vishay Siliconix
SKU: SIF902EDZ-T1-E3
Availability: InStock

REF: SIF902EDZ-T1-E3 Vishay Siliconix

SIF902EDZ-T1-E3

MOSFET 2N-CH 20V 7A 6-POWERPAK

SIF902EDZ-T1-E3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2N-CH 20V 7A 6-POWERPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® 2x5, power - max 1.6W.

Datasheet Request a Quote

In Stock: 2,710

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	7A
Rds On (Max) @ Id, Vgs	22mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	1.6W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® 2x5
Supplier Device Package	PowerPAK® (2x5)
