Name: SIE836DF-T1-E3
Brand: Vishay Siliconix
SKU: SIE836DF-T1-E3
Availability: InStock

REF: SIE836DF-T1-E3 Vishay Siliconix

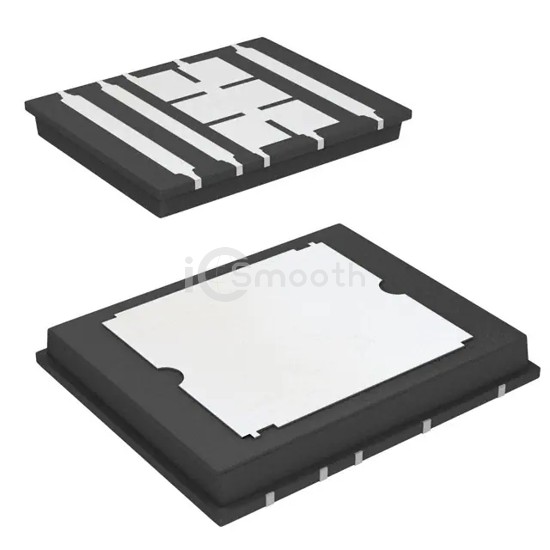

SIE836DF-T1-E3

MOSFET N-CH 200V 18.3A 10POLARPK

SIE836DF-T1-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 200V 18.3A 10POLARPK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 10-PolarPAK® (SH).

Datasheet Request a Quote

In Stock: 3,564

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	18.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	130mOhm @ 4.1A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	41 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1200 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	5.2W (Ta), 104W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	10-PolarPAK® (SH)
Package / Case	10-PolarPAK® (SH)
