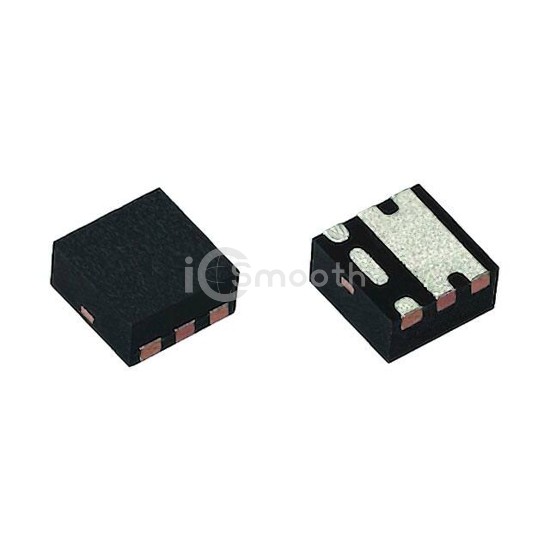

Name: SIB4317EDK-T1-GE3
Brand: Vishay Siliconix
SKU: SIB4317EDK-T1-GE3
Price: 0.48 USD
Availability: InStock

REF: SIB4317EDK-T1-GE3 Vishay Siliconix

SIB4317EDK-T1-GE3

Vishay Siliconix

P-CHANNEL 30-V (D-S) MOSFET POWE

SIB4317EDK-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. P-CHANNEL 30-V (D-S) MOSFET POWE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SC-75-6.

Request a Quote

In Stock: 9,754

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	4.3A (Ta), 4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	65mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	600 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.95W (Ta), 10W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SC-75-6
Package / Case	PowerPAK® SC-75-6
