Name: SIB414DK-T1-GE3
Brand: Vishay Siliconix
SKU: SIB414DK-T1-GE3
Availability: InStock

REF: SIB414DK-T1-GE3 Vishay Siliconix

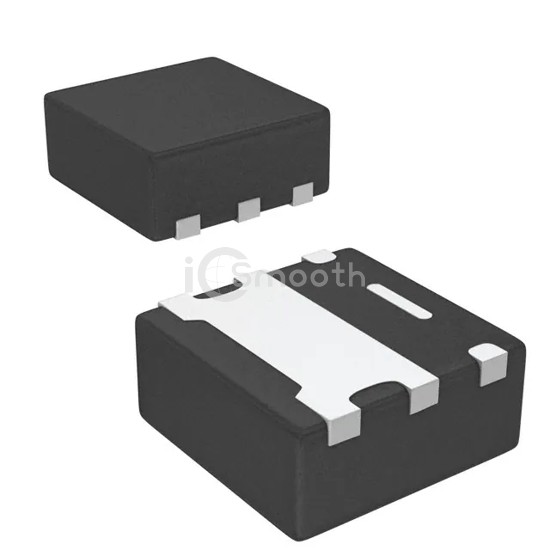

SIB414DK-T1-GE3

MOSFET N-CH 8V 9A PPAK SC75-6

SIB414DK-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 8V 9A PPAK SC75-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SC-75-6.

Datasheet Request a Quote

In Stock: 2,230

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	8 V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	26mOhm @ 7.9A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14.03 nC @ 5 V

Vgs (Max)	±5V
Input Capacitance (Ciss) (Max) @ Vds	732 pF @ 4 V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta), 13W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SC-75-6
Package / Case	PowerPAK® SC-75-6
