Name: SIB406EDK-T1-GE3
Brand: Vishay Siliconix
SKU: SIB406EDK-T1-GE3
Price: 0.60 USD
Availability: InStock

REF: SIB406EDK-T1-GE3 Vishay Siliconix

SIB406EDK-T1-GE3

Vishay Siliconix

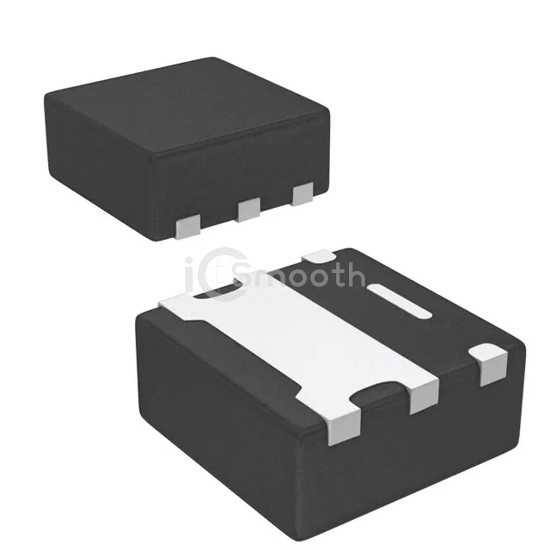

MOSFET N-CH 20V 6A PPAK SC75-6

SIB406EDK-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 20V 6A PPAK SC75-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SC-75-6.

Datasheet Request a Quote

In Stock: 6,486

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	46mOhm @ 3.9A, 4.5V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	350 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.95W (Ta), 10W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SC-75-6
Package / Case	PowerPAK® SC-75-6
