Name: SIAA02DJ-T1-GE3
Brand: Vishay Siliconix
SKU: SIAA02DJ-T1-GE3
Price: 0.63 USD
Availability: InStock

REF: SIAA02DJ-T1-GE3 Vishay Siliconix

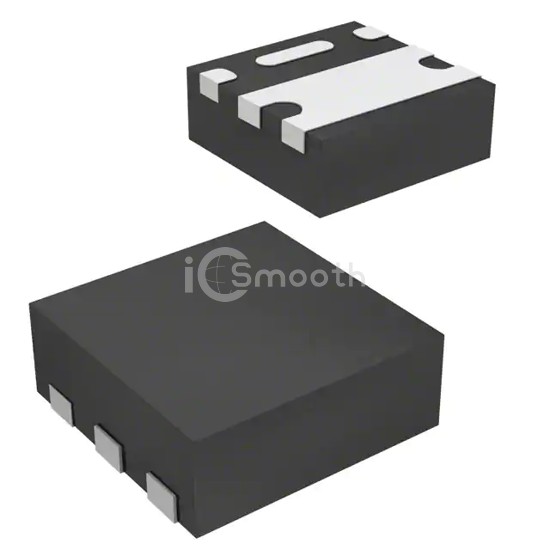

SIAA02DJ-T1-GE3

Vishay Siliconix

MOSFET N-CH 20V 22A/52A PPAK

SIAA02DJ-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 20V 22A/52A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SC-70-6.

Datasheet Request a Quote

In Stock: 3,198

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	22A (Ta), 52A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	4.7mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33 nC @ 10 V

Vgs (Max)	+12V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1250 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	3.5W (Ta), 19W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SC-70-6
Package / Case	PowerPAK® SC-70-6
