Name: SIA4371EDJ-T1-GE3
Brand: Vishay Siliconix
SKU: SIA4371EDJ-T1-GE3
Price: 0.56 USD
Availability: InStock

REF: SIA4371EDJ-T1-GE3 Vishay Siliconix

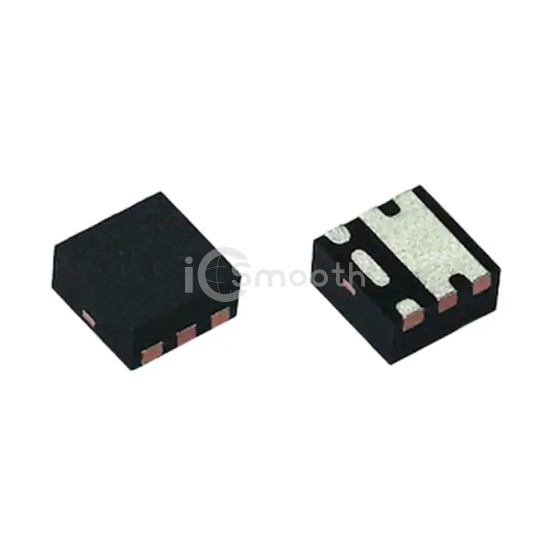

SIA4371EDJ-T1-GE3

Vishay Siliconix

P-CHANNEL 30-V (D-S) MOSFET POWE

SIA4371EDJ-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. P-CHANNEL 30-V (D-S) MOSFET POWE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SC-70-6.

Request a Quote

In Stock: 7,898

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6.4A (Ta), 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	45mOhm @ 3.7A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	2.9W (Ta), 15.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SC-70-6
Package / Case	PowerPAK® SC-70-6
