Name: SI9122ADQ-T1-E3
Brand: Vishay Siliconix
SKU: SI9122ADQ-T1-E3
Availability: InStock

REF: SI9122ADQ-T1-E3 Vishay Siliconix

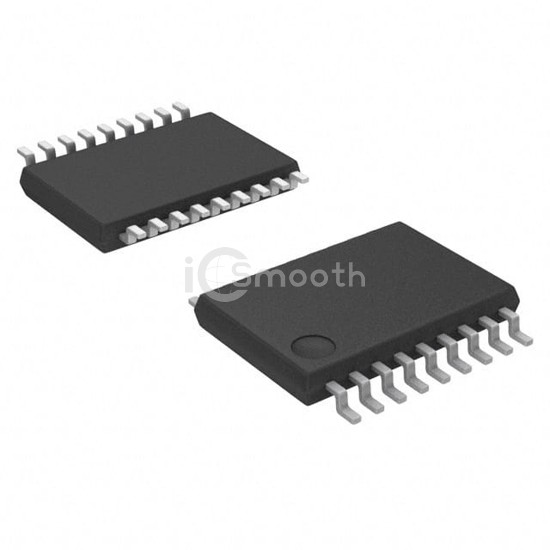

SI9122ADQ-T1-E3

IC REG CTRLR HALF-BRIDGE 20TSSOP

SI9122ADQ-T1-E3 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Vishay Siliconix. IC REG CTRLR HALF-BRIDGE 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10.5V ~ 13.2V, package / case 20-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 1,203

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Half-Bridge
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	10.5V ~ 13.2V
Frequency - Switching	500kHz

Duty Cycle (Max)	92%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Sequencing, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	20-TSSOP
