Name: SI8806DB-T2-E1
Brand: Vishay Siliconix
SKU: SI8806DB-T2-E1
Price: 0.48 USD
Availability: InStock

REF: SI8806DB-T2-E1 Vishay Siliconix

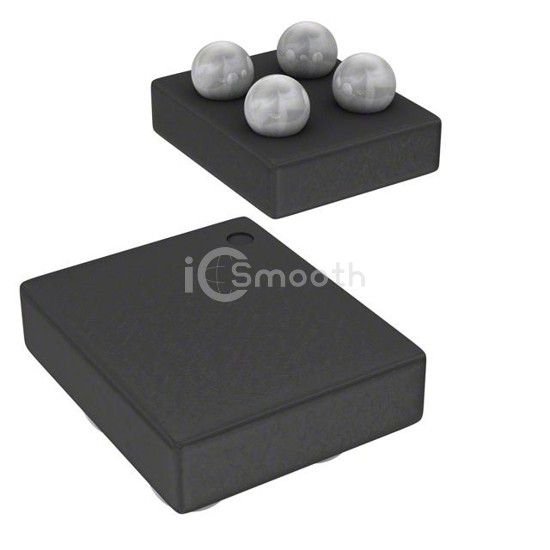

SI8806DB-T2-E1

Vishay Siliconix

MOSFET N-CH 12V 4MICROFOOT

SI8806DB-T2-E1 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 12V 4MICROFOOT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFBGA.

Datasheet Request a Quote

In Stock: 2,202

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	2.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	43mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 8 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-Microfoot
Package / Case	4-XFBGA
