Name: SI8473EDB-T1-E1
Brand: Vishay Siliconix
SKU: SI8473EDB-T1-E1
Availability: InStock

REF: SI8473EDB-T1-E1 Vishay Siliconix

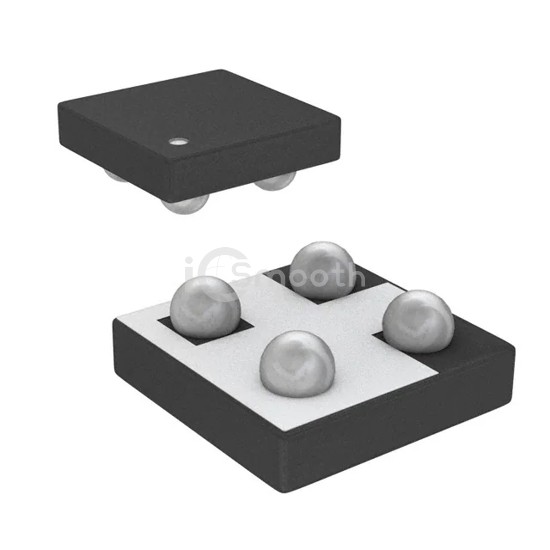

SI8473EDB-T1-E1

MOSFET P-CH 20V 4MICROFOOT

SI8473EDB-T1-E1 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 20V 4MICROFOOT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFBGA, CSPBGA.

Datasheet Request a Quote

In Stock: 5,236

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	41mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	1.1W (Ta), 2.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-Microfoot
Package / Case	4-XFBGA, CSPBGA
