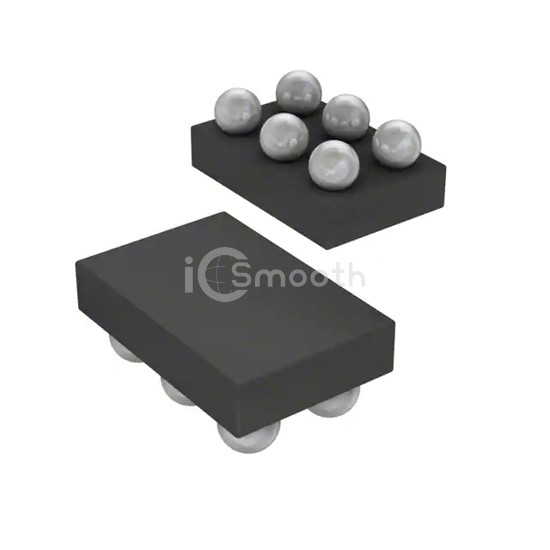

Name: SI8417DB-T2-E1
Brand: Vishay Siliconix
SKU: SI8417DB-T2-E1
Availability: InStock

REF: SI8417DB-T2-E1 Vishay Siliconix

SI8417DB-T2-E1

MOSFET P-CH 12V 14.5A 6MICROFOOT

SI8417DB-T2-E1 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 12V 14.5A 6MICROFOOT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-MICRO FOOT®CSP.

Datasheet Request a Quote

In Stock: 5,909

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	14.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	21mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	57 nC @ 5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2220 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	2.9W (Ta), 6.57W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-Micro Foot™ (1.5x1)
Package / Case	6-MICRO FOOT®CSP
