Name: SI7540DP-T1-E3
Brand: Vishay Siliconix
SKU: SI7540DP-T1-E3
Availability: InStock

REF: SI7540DP-T1-E3 Vishay Siliconix

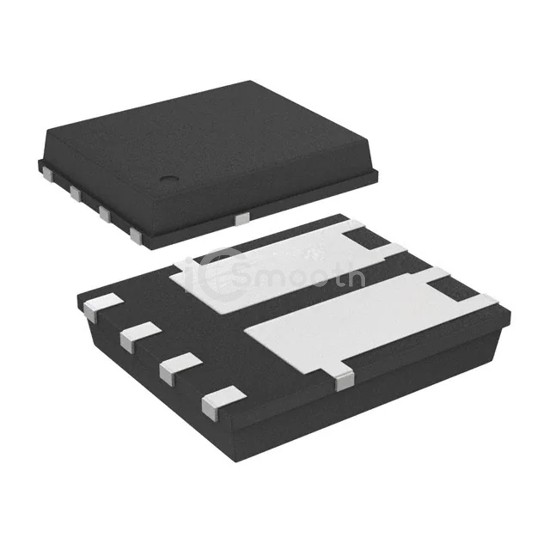

SI7540DP-T1-E3

MOSFET N/P-CH 12V 7.6A PPAK SO-8

SI7540DP-T1-E3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET N/P-CH 12V 7.6A PPAK SO-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 1.4W.

Datasheet Request a Quote

In Stock: 3,544

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	7.6A, 5.7A
Rds On (Max) @ Id, Vgs	17mOhm @ 11.8A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	1.4W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual
