Name: SI7469ADP-T1-RE3
Brand: Vishay Siliconix
SKU: SI7469ADP-T1-RE3
Price: 1.84 USD
Availability: InStock

REF: SI7469ADP-T1-RE3 Vishay Siliconix

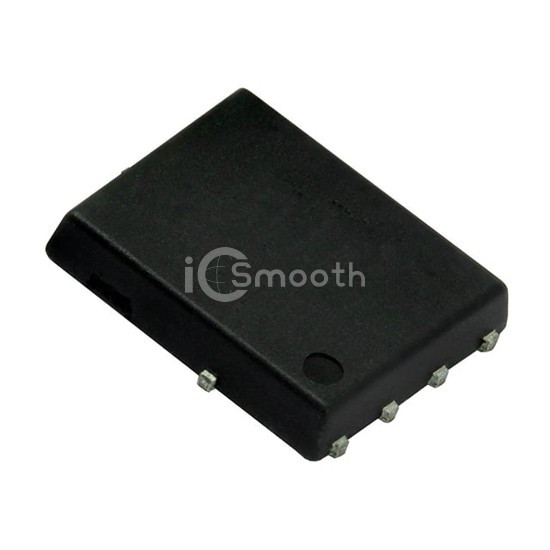

SI7469ADP-T1-RE3

Vishay Siliconix

MOSFET P-CH 80V 7.4A/46A PPAK

SI7469ADP-T1-RE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 80V 7.4A/46A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8.

Datasheet Request a Quote

In Stock: 7,455

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	7.4A (Ta), 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	19.3mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	65 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3420 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 73.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
