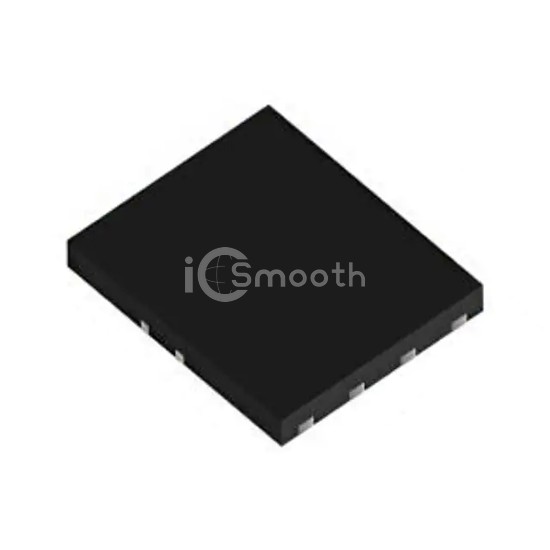

Name: SI7252ADP-T1-GE3
Brand: Vishay Siliconix
SKU: SI7252ADP-T1-GE3
Price: 1.72 USD
Availability: InStock

REF: SI7252ADP-T1-GE3 Vishay Siliconix

SI7252ADP-T1-GE3

Vishay Siliconix

DUAL N-CHANNEL 100-V (D-S) MOSFE

SI7252ADP-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 100-V (D-S) MOSFE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 3.6W (Ta), 33.8W (Tc).

Datasheet Request a Quote

In Stock: 6,561

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	9.3A (Ta), 28.7A (Tc)
Rds On (Max) @ Id, Vgs	18.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	26.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1266pF @ 50V
Power - Max	3.6W (Ta), 33.8W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8 Dual
Supplier Device Package	PowerPAK® SO-8 Dual
