Name: SI6415DQ-T1-BE3
Brand: Vishay Siliconix
SKU: SI6415DQ-T1-BE3
Price: 1.95 USD
Availability: InStock

REF: SI6415DQ-T1-BE3 Vishay Siliconix

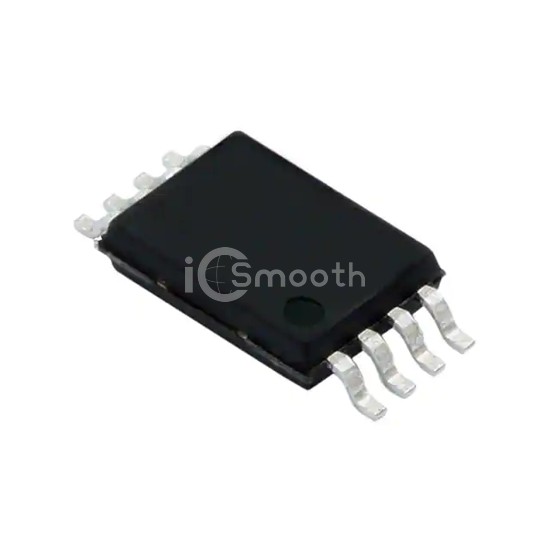

SI6415DQ-T1-BE3

Vishay Siliconix

P-CHANNEL 30-V (D-S) MOSFET

SI6415DQ-T1-BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. P-CHANNEL 30-V (D-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 8,396

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	19mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	70 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-TSSOP
Package / Case	8-TSSOP (0.173", 4.40mm Width)
