Name: SI5938DU-T1-E3
Brand: Vishay Siliconix
SKU: SI5938DU-T1-E3
Availability: InStock

REF: SI5938DU-T1-E3 Vishay Siliconix

SI5938DU-T1-E3

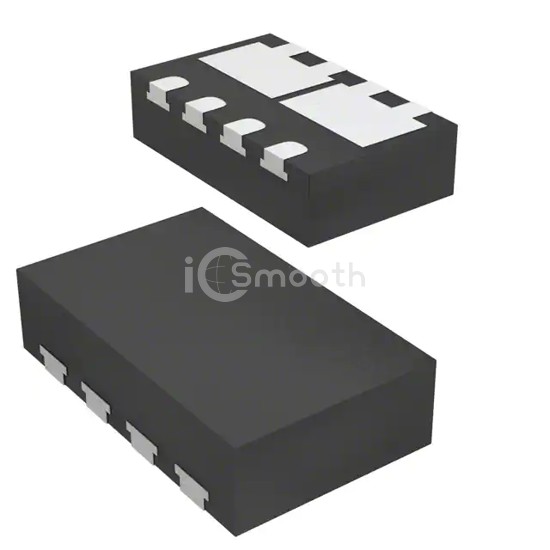

MOSFET 2N-CH 20V 6A 8PWRPAK

SI5938DU-T1-E3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2N-CH 20V 6A 8PWRPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® ChipFET™ Dual, power - max 8.3W.

Datasheet Request a Quote

In Stock: 5,556

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	6A
Rds On (Max) @ Id, Vgs	39mOhm @ 4.4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	16nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds	520pF @ 10V
Power - Max	8.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® ChipFET™ Dual
Supplier Device Package	PowerPAK® ChipFet Dual
