Name: SI5418DU-T1-GE3
Brand: Vishay Siliconix
SKU: SI5418DU-T1-GE3
Price: 1.38 USD
Availability: InStock

REF: SI5418DU-T1-GE3 Vishay Siliconix

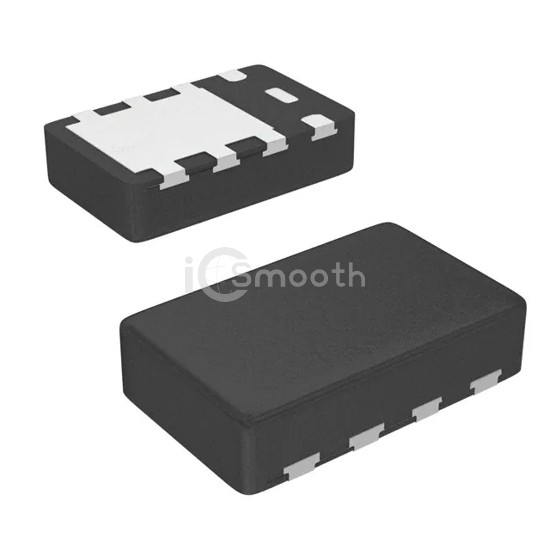

SI5418DU-T1-GE3

Vishay Siliconix

MOSFET N-CH 30V 12A PPAK

SI5418DU-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 30V 12A PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case PowerPAK® ChipFET™ Single.

Datasheet Request a Quote

In Stock: 6,083

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	14.5mOhm @ 7.7A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1350 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 31W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® ChipFET™ Single
Package / Case	PowerPAK® ChipFET™ Single
