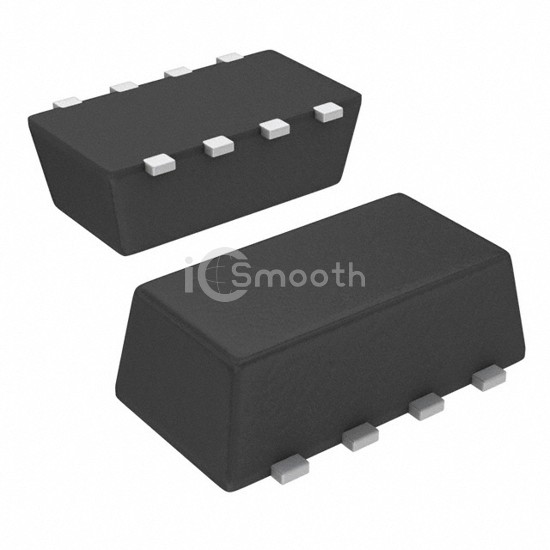

Name: SI5414DC-T1-GE3
Brand: Vishay Siliconix
SKU: SI5414DC-T1-GE3
Availability: InStock

REF: SI5414DC-T1-GE3 Vishay Siliconix

SI5414DC-T1-GE3

MOSFET N-CH 20V 6A 1206-8

SI5414DC-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 20V 6A 1206-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 2,884

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	17mOhm @ 9.9A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	41 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1500 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 6.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	1206-8 ChipFET™
Package / Case	8-SMD, Flat Lead
