Name: SI5411EDU-T1-GE3
Brand: Vishay Siliconix
SKU: SI5411EDU-T1-GE3
Availability: InStock

REF: SI5411EDU-T1-GE3 Vishay Siliconix

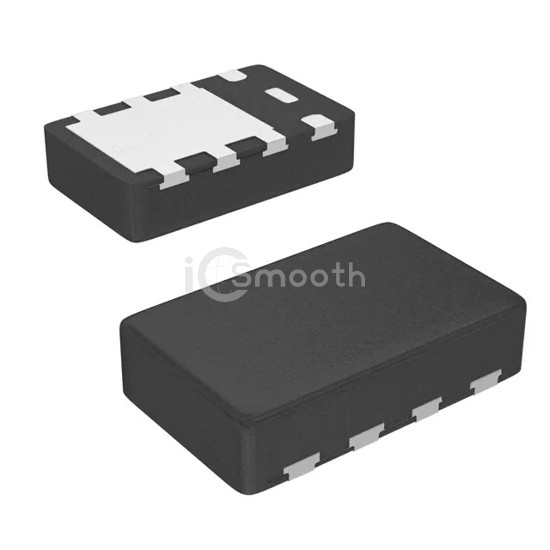

SI5411EDU-T1-GE3

MOSFET P-CH 12V 25A PPAK

SI5411EDU-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 12V 25A PPAK. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), package / case PowerPAK® ChipFET™ Single.

Datasheet Request a Quote

In Stock: 1,417

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	8.2mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	105 nC @ 8 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	4100 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 31W (Tc)
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® ChipFet Single
Package / Case	PowerPAK® ChipFET™ Single
