Name: SI5401DC-T1-E3
Brand: Vishay Siliconix
SKU: SI5401DC-T1-E3
Availability: InStock

REF: SI5401DC-T1-E3 Vishay Siliconix

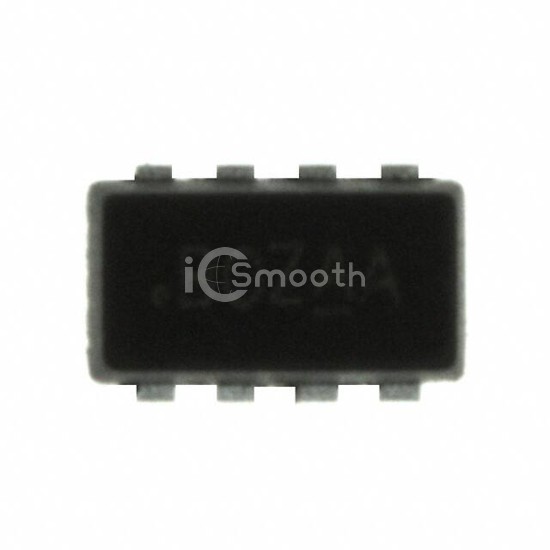

SI5401DC-T1-E3

MOSFET P-CH 20V 5.2A 1206-8

SI5401DC-T1-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 20V 5.2A 1206-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 1,170

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	5.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	32mOhm @ 5.2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	1206-8 ChipFET™
Package / Case	8-SMD, Flat Lead
