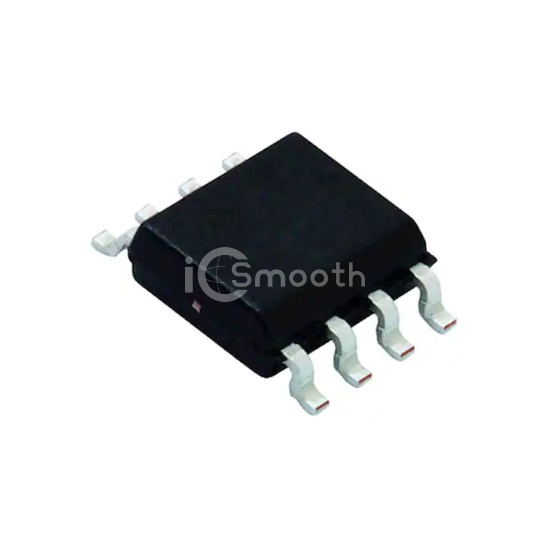

Name: SI4153DY-T1-GE3
Brand: Vishay Siliconix
SKU: SI4153DY-T1-GE3
Price: 0.75 USD
Availability: InStock

REF: SI4153DY-T1-GE3 Vishay Siliconix

SI4153DY-T1-GE3

Vishay Siliconix

P-CHANNEL 30-V (D-S) MOSFET SO-8

SI4153DY-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. P-CHANNEL 30-V (D-S) MOSFET SO-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Request a Quote

In Stock: 4,487

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	14.3A (Ta), 19.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	93 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	3600 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 5.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)
