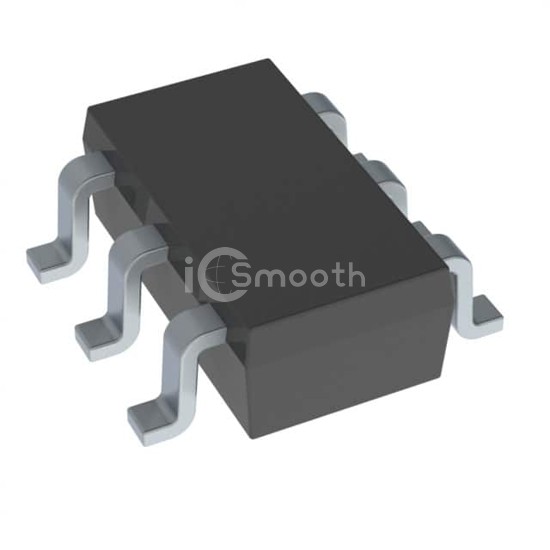

Name: SI3911DV-T1-E3
Brand: Vishay Siliconix
SKU: SI3911DV-T1-E3
Availability: InStock

REF: SI3911DV-T1-E3 Vishay Siliconix

SI3911DV-T1-E3

MOSFET 2P-CH 20V 1.8A 6TSOP

SI3911DV-T1-E3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2P-CH 20V 1.8A 6TSOP. Key specifications: mounting type Surface Mount, package / case SOT-23-6 Thin, TSOT-23-6, power - max 830mW.

Datasheet Request a Quote

In Stock: 9,363

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.8A
Rds On (Max) @ Id, Vgs	145mOhm @ 2.2A, 4.5V
Vgs(th) (Max) @ Id	450mV @ 250µA (Min)

Gate Charge (Qg) (Max) @ Vgs	7.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	830mW
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	6-TSOP
