Name: SI3474DV-T1-BE3
Brand: Vishay Siliconix
SKU: SI3474DV-T1-BE3
Price: 0.46 USD
Availability: InStock

REF: SI3474DV-T1-BE3 Vishay Siliconix

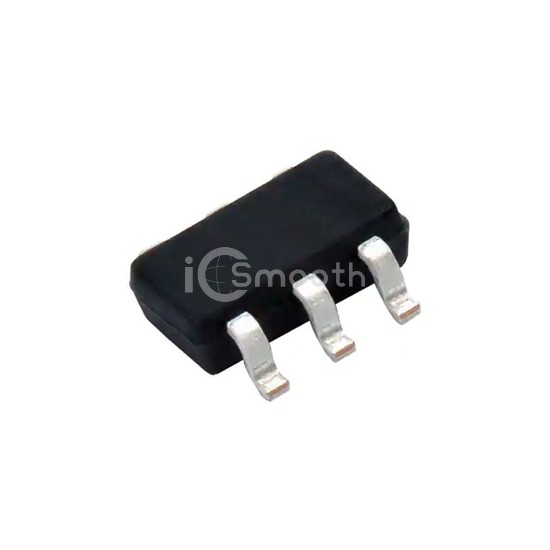

SI3474DV-T1-BE3

Vishay Siliconix

N-CHANNEL 100-V (D-S) MOSFET

SI3474DV-T1-BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 100-V (D-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6 Thin, TSOT-23-6.

Datasheet Request a Quote

In Stock: 2,365

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	2.8A (Ta), 3.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	126mOhm @ 2A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10.4 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	196 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 3.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SOT-23-6 Thin, TSOT-23-6
