Name: SI3458BDV-T1-BE3
Brand: Vishay Siliconix
SKU: SI3458BDV-T1-BE3
Price: 0.95 USD
Availability: InStock

REF: SI3458BDV-T1-BE3 Vishay Siliconix

SI3458BDV-T1-BE3

Vishay Siliconix

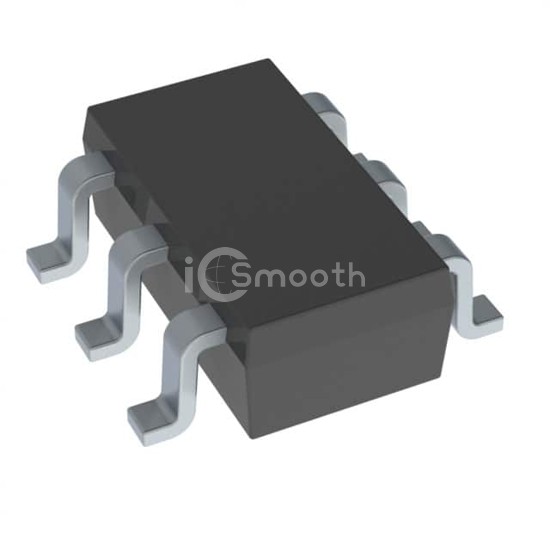

MOSFET N-CH 60V 3.2A/4.1A 6TSOP

SI3458BDV-T1-BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 60V 3.2A/4.1A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6 Thin, TSOT-23-6.

Request a Quote

In Stock: 3,914

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	3.2A (Ta), 4.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	100mOhm @ 3.2A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	350 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 3.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SOT-23-6 Thin, TSOT-23-6
