Name: SI3442BDV-T1-BE3
Brand: Vishay Siliconix
SKU: SI3442BDV-T1-BE3
Price: 0.62 USD
Availability: InStock

REF: SI3442BDV-T1-BE3 Vishay Siliconix

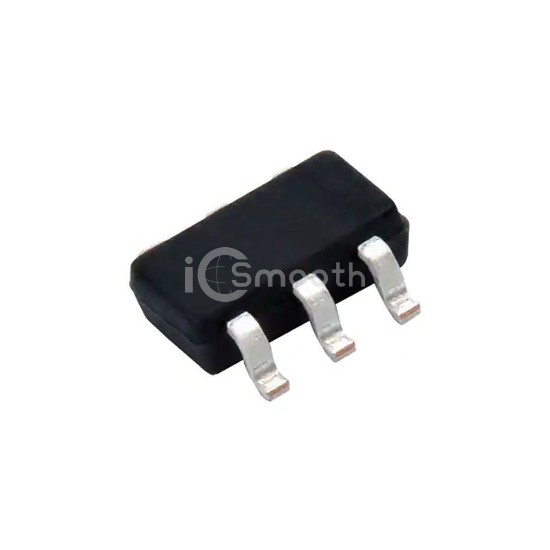

SI3442BDV-T1-BE3

Vishay Siliconix

N-CHANNEL 2.5-V (G-S) MOSFET

SI3442BDV-T1-BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 2.5-V (G-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6 Thin, TSOT-23-6.

Datasheet Request a Quote

In Stock: 2,810

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	57mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	295 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	860mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SOT-23-6 Thin, TSOT-23-6
