Name: SI3424CDV-T1-BE3
Brand: Vishay Siliconix
SKU: SI3424CDV-T1-BE3
Price: 0.56 USD
Availability: InStock

REF: SI3424CDV-T1-BE3 Vishay Siliconix

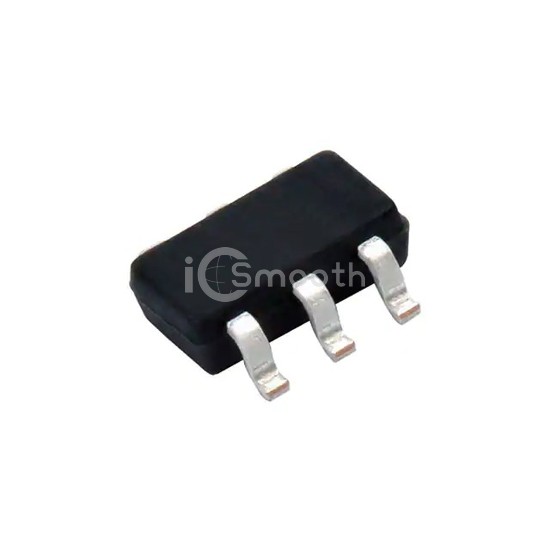

SI3424CDV-T1-BE3

Vishay Siliconix

N-CHANNEL 30-V (D-S) MOSFET

SI3424CDV-T1-BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 30-V (D-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6 Thin, TSOT-23-6.

Datasheet Request a Quote

In Stock: 1,436

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	7.2A (Ta), 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	26mOhm @ 7.2A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	405 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 3.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SOT-23-6 Thin, TSOT-23-6
