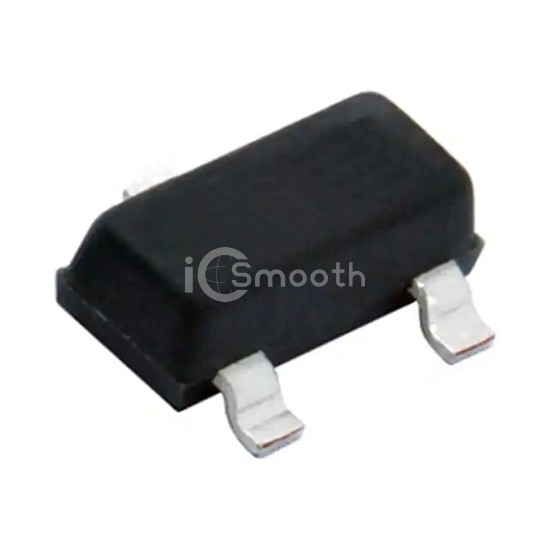

Name: SI2387DS-T1-GE3
Brand: Vishay Siliconix
SKU: SI2387DS-T1-GE3
Price: 0.52 USD
Availability: InStock

REF: SI2387DS-T1-GE3 Vishay Siliconix

SI2387DS-T1-GE3

Vishay Siliconix

P-CHANNEL -80V SOT-23, 164 M @ 1

SI2387DS-T1-GE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. P-CHANNEL -80V SOT-23, 164 M @ 1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 5,341

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	2.1A (Ta), 3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	164mOhm @ 2.1A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	395 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta), 2.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
