Name: SI2328DS-T1-BE3
Brand: Vishay Siliconix
SKU: SI2328DS-T1-BE3
Price: 0.90 USD
Availability: InStock

REF: SI2328DS-T1-BE3 Vishay Siliconix

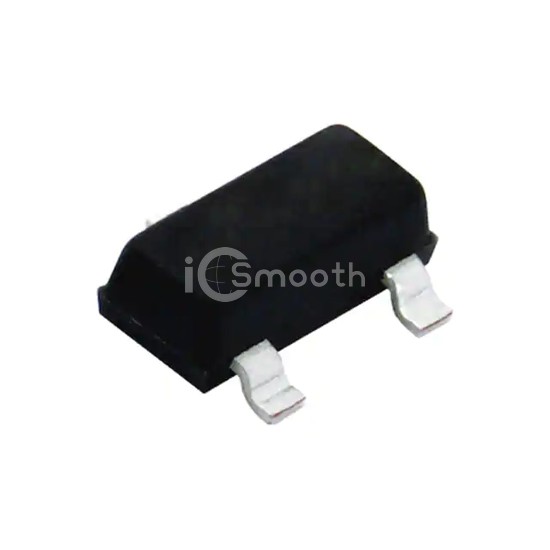

SI2328DS-T1-BE3

Vishay Siliconix

N-CHANNEL 100-V (D-S) MOSFET

SI2328DS-T1-BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL 100-V (D-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 4,453

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	1.15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	250mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	730mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
