Name: SI2315BDS-T1-BE3
Brand: Vishay Siliconix
SKU: SI2315BDS-T1-BE3
Price: 0.56 USD
Availability: InStock

REF: SI2315BDS-T1-BE3 Vishay Siliconix

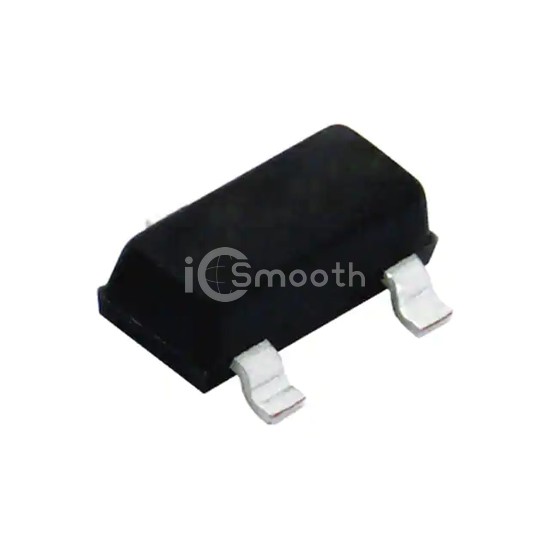

SI2315BDS-T1-BE3

Vishay Siliconix

P-CHANNEL 1.8-V (G-S) MOSFET

SI2315BDS-T1-BE3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. P-CHANNEL 1.8-V (G-S) MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 9,320

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	50mOhm @ 3.85A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	715 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	750mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
