Name: SI1305DL-T1-E3
Brand: Vishay Siliconix
SKU: SI1305DL-T1-E3
Availability: InStock

REF: SI1305DL-T1-E3 Vishay Siliconix

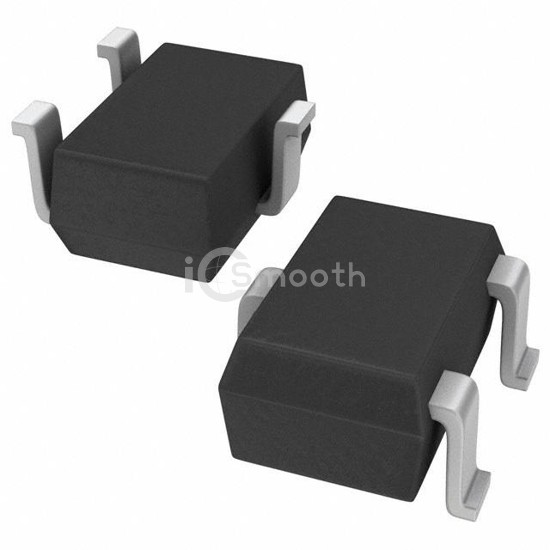

SI1305DL-T1-E3

MOSFET P-CH 8V 860MA SC70-3

SI1305DL-T1-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 8V 860MA SC70-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 3,514

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	8 V
Current - Continuous Drain (Id) @ 25°C	860mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	280mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	450mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	4 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	290mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-70-3
Package / Case	SC-70, SOT-323
