Name: SI1071X-T1-E3
Brand: Vishay Siliconix
SKU: SI1071X-T1-E3
Availability: InStock

REF: SI1071X-T1-E3 Vishay Siliconix

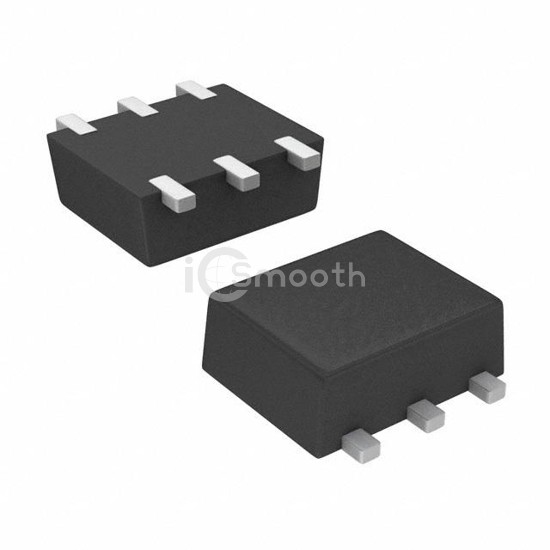

SI1071X-T1-E3

MOSFET P-CH 30V 0.96A SOT563F

SI1071X-T1-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 30V 0.96A SOT563F. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666.

Datasheet Request a Quote

In Stock: 1,368

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	960mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	167mOhm @ 960mA, 10V
Vgs(th) (Max) @ Id	1.45V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13.3 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	315 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	236mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-89 (SOT-563F)
Package / Case	SOT-563, SOT-666
