Name: SI1046R-T1-E3
Brand: Vishay Siliconix
SKU: SI1046R-T1-E3
Availability: InStock

REF: SI1046R-T1-E3 Vishay Siliconix

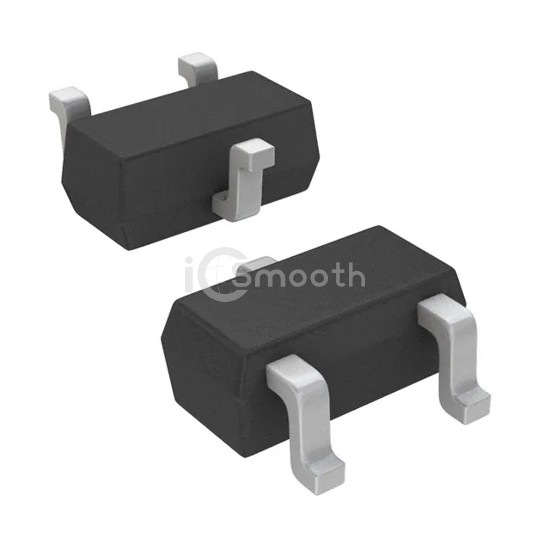

SI1046R-T1-E3

MOSFET N-CH 20V SC75A

SI1046R-T1-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 20V SC75A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 4,371

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	606mA ( Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	420mOhm @ 606mA, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.49 nC @ 5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	66 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	250mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-75A
Package / Case	SC-75, SOT-416
