Name: SI1031R-T1-E3
Brand: Vishay Siliconix
SKU: SI1031R-T1-E3
Availability: InStock

REF: SI1031R-T1-E3 Vishay Siliconix

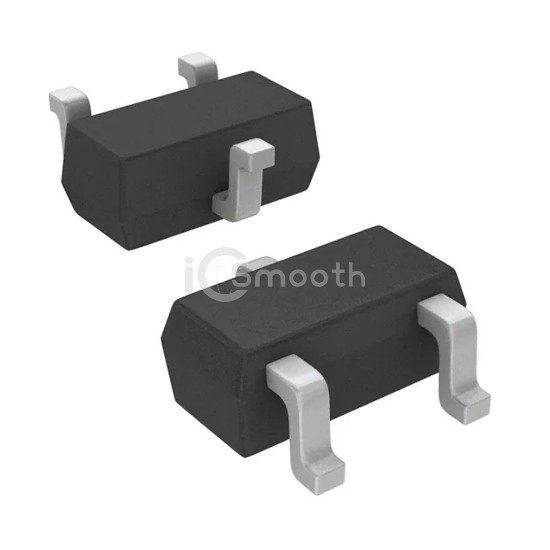

SI1031R-T1-E3

MOSFET P-CH 20V 140MA SC75A

SI1031R-T1-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 20V 140MA SC75A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 2,608

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	140mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	8Ohm @ 150mA, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.5 nC @ 4.5 V

Vgs (Max)	±6V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	250mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-75A
Package / Case	SC-75, SOT-416
