Name: SI1022R-T1-E3
Brand: Vishay Siliconix
SKU: SI1022R-T1-E3
Availability: InStock

REF: SI1022R-T1-E3 Vishay Siliconix

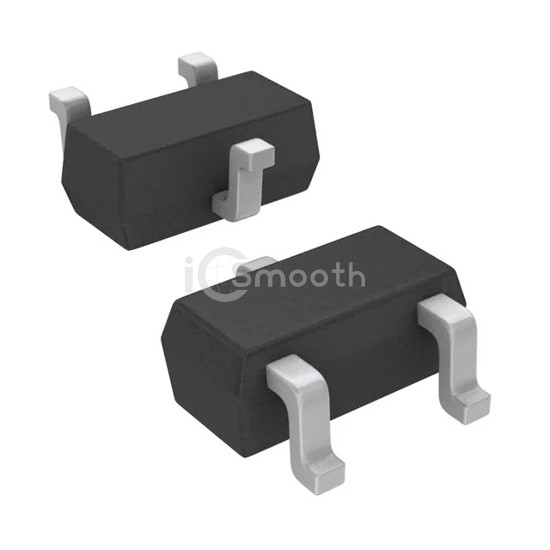

SI1022R-T1-E3

MOSFET N-CH 60V 330MA SC75A

SI1022R-T1-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 60V 330MA SC75A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 1,146

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	330mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.25Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	30 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	250mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-75A
Package / Case	SC-75, SOT-416
