Name: IRLU3714TR
Brand: Vishay Siliconix
SKU: IRLU3714TR
Availability: InStock

REF: IRLU3714TR Vishay Siliconix

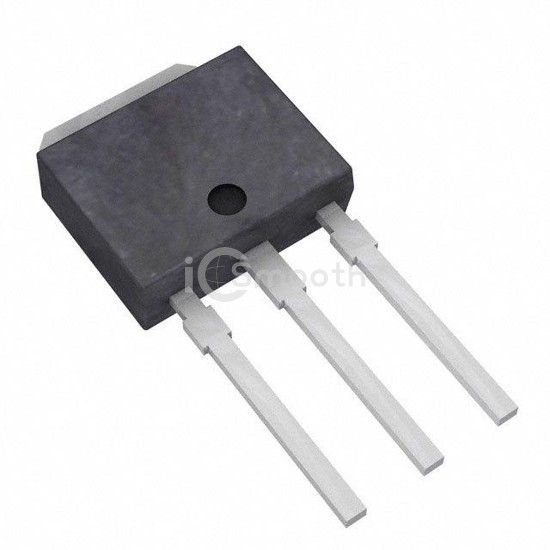

IRLU3714TR

MOSFET N-CH 20V 36A TO251AA

IRLU3714TR is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 20V 36A TO251AA. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Request a Quote

In Stock: 1,375

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	20mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.7 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	670 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	47W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251AA
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
