Name: IRLR8103TRR
Brand: Vishay Siliconix
SKU: IRLR8103TRR
Availability: InStock

REF: IRLR8103TRR Vishay Siliconix

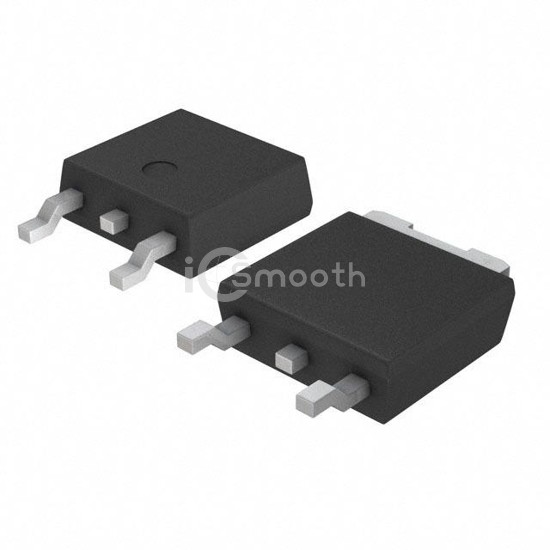

IRLR8103TRR

MOSFET N-CH 30V 89A DPAK

IRLR8103TRR is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 30V 89A DPAK. Key specifications: mounting type Surface Mount, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 2,639

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	89A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
