Name: IRLR120TRPBF
Brand: Vishay Siliconix
SKU: IRLR120TRPBF
Price: 1.73 USD
Availability: InStock

REF: IRLR120TRPBF Vishay Siliconix

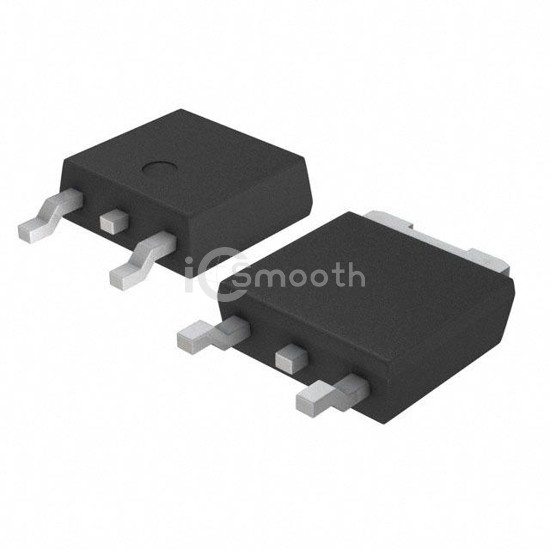

IRLR120TRPBF

MOSFET N-CH 100V 7.7A DPAK

IRLR120TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 100V 7.7A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 5,842

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	7.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4V, 5V
Rds On (Max) @ Id, Vgs	270mOhm @ 4.6A, 5V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	490 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
