Name: IRLBA3803
Brand: Vishay Siliconix
SKU: IRLBA3803
Availability: InStock

REF: IRLBA3803 Vishay Siliconix

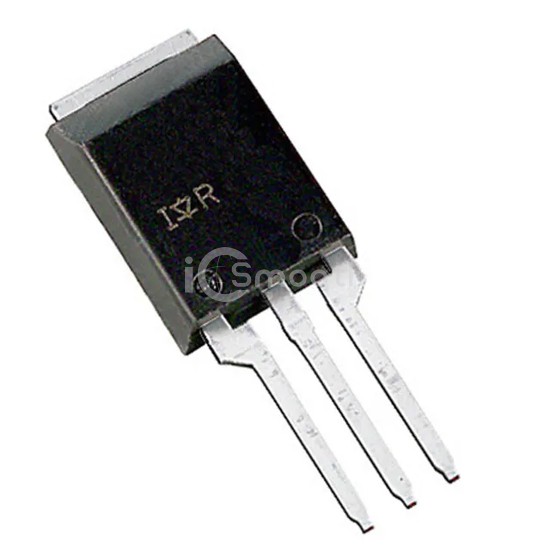

IRLBA3803

MOSFET N-CH 30V 179A SUPER-220

IRLBA3803 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 30V 179A SUPER-220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case Super-220™.

Datasheet Request a Quote

In Stock: 7,861

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	179A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5mOhm @ 71A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	140 nC @ 4.5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	5000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	270W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-220™ (TO-273AA)
Package / Case	Super-220™
